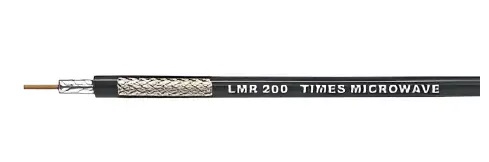

LMR200 Times Coaxial Cable
Custom LMR200 Times cable assemblies. Choose from 19 compatible connectors and any length from 1 to 100 feet.
Specifications
Diameter
.200 INCH
Impedance
50 Ohm
Frequency
DC – 6 GHz
Vel. Factor
83%
Max Voltage
600 VRMS
Shield
Aluminum foil + tinned copper braid
Jacket
PE
Bend Radius
1.0 in (25mm)
Weight
2.0 lb/100ft
Temp Range
-40°C to +85°C
About LMR200 Times
LMR-200 is a Times Microwave 50-ohm flexible coaxial cable with a 0.200" diameter, positioned between LMR-195 and LMR-240 for applications requiring a compromise between flexibility and low loss. It supports frequencies up to 3 GHz and is frequently deployed for WLAN access point drops, panel antenna leads, and base station jumpers up to 50 feet.
Attenuation (dB per 100 ft)
100 MHz
3.0 dB
450 MHz
6.6 dB
900 MHz
9.5 dB
1.8 GHz
13.9 dB
2.4 GHz
16.2 dB
5.8 GHz
27.0 dB
Select End A Connector (19 available)
Choose the connector for the first end of your cable.
Select End B Connector
Choose the connector for the second end.
Common Applications
Frequently Asked Questions
What connectors are compatible with LMR200 Times?
LMR200 Times is compatible with 19 connector types including SMA MALE, SMA FEMALE, RP-SMA MALE, RP-SMA FEMALE, N MALE, and more. All connectors can be paired in any combination.
What is the impedance of LMR200 Times?
50 Ohm — standard for RF systems, test equipment, and antenna feedlines.
What frequency range does LMR200 Times support?
LMR200 Times supports frequencies from DC to DC – 6 GHz.
How are LMR200 Times cables assembled?
Every LMR200 Times cable assembly is hand-terminated and continuity tested at our US facility before shipping. We do not drop-ship pre-made cables — each one is built to your specifications.
What lengths are available for LMR200 Times?
LMR200 Times is available from 1 ft up to 100 ft. Use the cable builder for any custom length.
