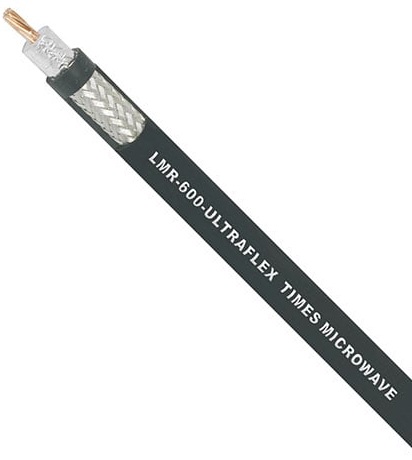

LMR600 ULTRA FLEX Times cable

Cable

LMR600 ULTRA FLEX Times

LMR600 ULTRA FLEX Times Coaxial Cable

Custom LMR600 ULTRA FLEX Times cable assemblies. Choose from 4 compatible connectors and any length from 1 to 1200 feet.

From $24.29 + $6.29/ft

Specifications

Diameter .600 INCH
Impedance 50 Ohm
Frequency Range DC – 6 GHz
Velocity Factor 86%
Max Voltage 2500 VRMS
Shield Type Aluminum foil + tinned copper braid
Jacket PVC
Bend Radius 2.5 in (63mm)
Weight 11.0 lb/100ft
Temp Range -40°C to +85°C
Build Custom LMR600 ULTRA FLEX Times Cable

About LMR600 ULTRA FLEX Times

LMR-600-UltraFlex provides the ultra-low-loss performance of LMR-600 in a more flexible form factor, enabling easier routing around obstacles and through conduit without specialized bending tools. Specified for cell tower jumpers, rooftop DAS assemblies, and high-demand installations where the stiffness of standard LMR-600 would complicate routing.

Attenuation (dB per 100 ft)

100 MHz 450 MHz 900 MHz 1.8 GHz 2.4 GHz 5.8 GHz
1.1 2.2 3.2 4.6 5.4 8.8

Select End A Connector (4 available)

Choose the connector for the first end of your cable.

Technical Specifications

Impedance 50 Ohm
Frequency Range DC – 6 GHz
Velocity Factor 86%
Capacitance 23.6 pF/ft
Max Voltage 2500 VRMS
Center Conductor Stranded bare copper, 4.13mm
Dielectric Foamed PE
Shield Type Aluminum foil + tinned copper braid
Jacket Material PVC
Bend Radius 2.5 in (63mm)
Weight per ft 11.0 lb/100ft
Temp Range -40°C to +85°C

Common Applications

Commercial Tower Feedlines
High-Power RF Systems
Broadcast Antenna Runs
Low-Loss Long Distance Runs

Frequently Asked Questions

What connectors are compatible with LMR600 ULTRA FLEX Times?

LMR600 ULTRA FLEX Times is compatible with 4 connector types including N MALE, N FEMALE, PL259 UHF Male, SO239 UHF Female, and more. All connectors can be paired in any combination.

What is the impedance of LMR600 ULTRA FLEX Times?

50 Ohm — standard for RF systems, test equipment, and antenna feedlines.

What frequency range does LMR600 ULTRA FLEX Times support?

LMR600 ULTRA FLEX Times supports frequencies from DC to DC – 6 GHz.

How are LMR600 ULTRA FLEX Times cables assembled?

Every LMR600 ULTRA FLEX Times cable assembly is hand-terminated and continuity tested at our US facility before shipping. We do not drop-ship pre-made cables — each one is built to your specifications.

What lengths are available for LMR600 ULTRA FLEX Times?

LMR600 ULTRA FLEX Times is available from 1 ft up to 1200 ft. Use the cable builder for any custom length.
