RFC240 — RP-SMA MALE to RP-SMA MALE
RFC240 RP-SMA cable for outdoor access point drops and WiFi antenna runs from 15 to 100 ft.
Cable
RFC240
End A
RP-SMA MALE
End B
RP-SMA MALE
Used For
RP-SMA WiFi Extension Cable — RFC240
Extends RP-SMA WiFi antenna ports on routers and access points to ceiling-mounted, wall-mounted, or outdoor antenna locations. RFC240 delivers ~4.5 dB/100ft at 1 GHz — flexible enough for through-wall and ceiling routing while providing significantly lower loss than RG58 on runs from 15 to 100 ft.
Specs Summary
Made in USA
Assembled and tested in-house
Free Shipping
Fast, reliable delivery
Tested & Verified
Every cable tested before shipping
Easy Returns
30-day hassle-free returns
Still need help? Talk to an expert.
Our RF team is happy to point you in the right direction.
Call an RF expert
1-661-200-0771
Email us
sales@wifiexpert.us
Need a custom cable?
Build your exact cable in seconds using our Cable Builder.
About This Assembly
Specs Summary

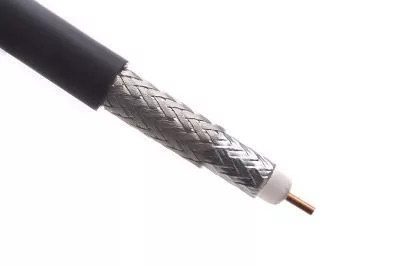

RFC240 Cable
RFC-240 is a 0.240" 50-ohm low-loss coaxial cable delivering performance comparable to LMR-240 at a more accessible price, making it popular for installers who need reliable medium-distance cable runs. Well suited for cellular repeater installations, point-to-point wireless links, and access point feedlines up to 75 feet.
RP-SMA Connector
RP-SMA (Reverse Polarity SMA) uses the SMA threaded coupling mechanism but with the male/female pin convention reversed — the jack has a pin and the plug has a socket. Originally standardized to prevent connection of uncertified antennas to consumer WiFi equipment, RP-SMA is now the dominant connector on commercial WiFi routers, access points, and 2.4/5 GHz antennas.
Common Applications
This RP-SMA cable assembly is well suited for medium-length cellular and WiFi antenna runs at a value price point. The combination of reliable RP-SMA connectors and custom-cut cable length makes it a practical choice for both field installations and bench setups. Every assembly is hand-terminated, continuity tested, and ships free within the USA.
RFC240 Signal Loss
Approximate attenuation at common RF frequencies.
| Frequency | Loss / 100 ft | Loss / ft |
|---|---|---|
| 100 MHz | 2.5 dB | 0.025 dB |
| 450 MHz | 5.4 dB | 0.054 dB |
| 900 MHz | 7.8 dB | 0.078 dB |
| 1.8 GHz | 11.3 dB | 0.113 dB |
| 2.4 GHz | 13.1 dB | 0.131 dB |
| 5.8 GHz | 21.5 dB | 0.215 dB |
Frequently Asked Questions
What is RFC240 coaxial cable used for?
RFC-240 is a 0.240" 50-ohm low-loss coaxial cable delivering performance comparable to LMR-240 at a more accessible price, making it popular for installers who need reliable medium-distance cable runs. Well suited for cellular repeater installations, point-to-point wireless links, and access point feedlines up to 75 feet.
What is the signal loss of RFC240?
At 1800 MHz, RFC240 has approximately 11.3 dB of loss per 100 ft (0.113 dB/ft).
What frequency range does this assembly support?
This assembly is rated DC – 6 GHz, limited by the lowest-rated component across the cable and connectors.
