RG142 Coaxial Cable
Custom RG142 cable assemblies. Choose from 52 compatible connectors and any length from 1 to 100 feet.
Specifications
Diameter
.195 INCH
Impedance
50 Ohm
Frequency
DC – 6 GHz
Vel. Factor
70%
Max Voltage
1400 VRMS
Shield
Double silver-plated copper braid
Jacket
FEP
Bend Radius
1.0 in (25mm)
Weight
2.8 lb/100ft
Temp Range
-55°C to +200°C
About RG142
RG-142 is a double-shielded 50-ohm PTFE coaxial cable rated for operation from cryogenic temperatures up to +200°C with a 0.195" outer diameter. Its dual-shield construction provides excellent EMI rejection while the PTFE dielectric ensures stable electrical performance across a wide frequency range. The preferred choice for military, aerospace, and high-power RF applications.
Attenuation (dB per 100 ft)
100 MHz
3.8 dB
450 MHz
8.5 dB
900 MHz
12.5 dB
1.8 GHz
18.5 dB
2.4 GHz
21.5 dB
5.8 GHz
37.0 dB

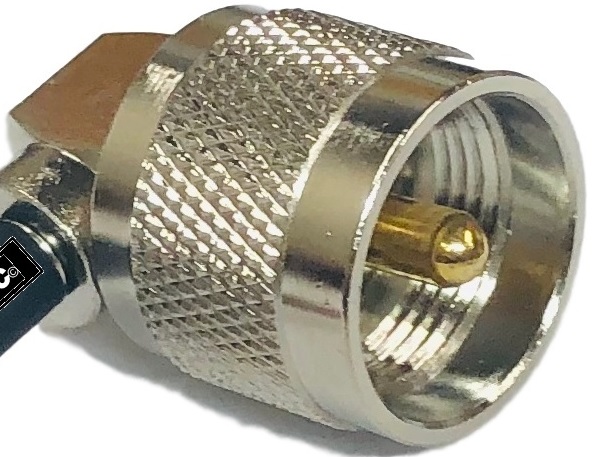

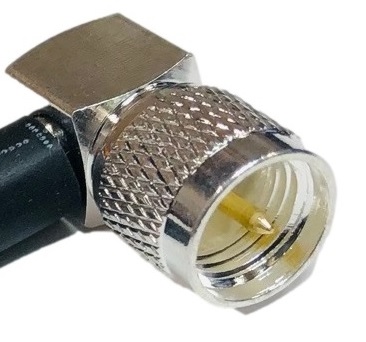

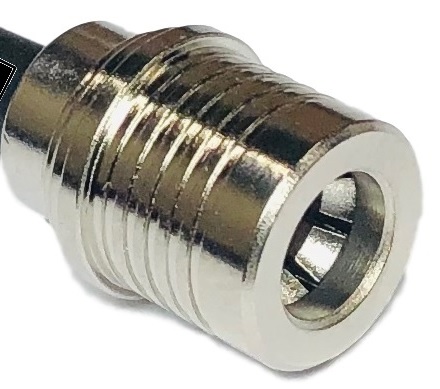

Select End A Connector (52 available)
Choose the connector for the first end of your cable.
Select End B Connector
Choose the connector for the second end.
Common Applications
Frequently Asked Questions
What connectors are compatible with RG142?
RG142 is compatible with 52 connector types including SMA MALE, SMA FEMALE, RP-SMA MALE, RP-SMA FEMALE, SMA MALE ANGLE, and more. All connectors can be paired in any combination.
What is the impedance of RG142?
50 Ohm — standard for RF systems, test equipment, and antenna feedlines.
What frequency range does RG142 support?
RG142 supports frequencies from DC to DC – 6 GHz.
How are RG142 cables assembled?
Every RG142 cable assembly is hand-terminated and continuity tested at our US facility before shipping. We do not drop-ship pre-made cables — each one is built to your specifications.
What lengths are available for RG142?
RG142 is available from 1 ft up to 100 ft. Use the cable builder for any custom length.
