RG174 — AM/FM MALE to F FEMALE
Extends or adapts AM/FM vehicle antenna signals using flexible RG174 cable for in-dash installations.
Cable
RG174
End A
AM/FM MALE
End B
F FEMALE
Used For
Car Radio Antenna Extension
The AM/FM DIN male connector is standard on car radios and head units. The F female end connects to standard coax or antenna adapters. RG174 routes easily through tight door and dash cavities for aftermarket stereo installs.
Specs Summary
Made in USA
Assembled and tested in-house
Free Shipping
Fast, reliable delivery
Tested & Verified
Every cable tested before shipping
Easy Returns
30-day hassle-free returns
Still need help? Talk to an expert.
Our RF team is happy to point you in the right direction.
Call an RF expert
1-661-200-0771
Email us
sales@wifiexpert.us
Need a custom cable?
Build your exact cable in seconds using our Cable Builder.
About This Assembly
Specs Summary

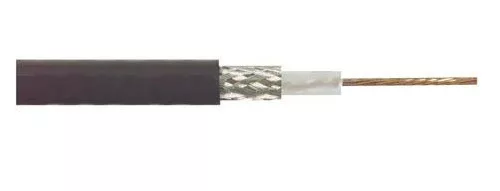

RG174 Cable
RG-174 is an ultra-thin, highly flexible 50-ohm coaxial cable with a 0.100" outer diameter — one of the smallest coax types available. Its stranded center conductor and single-braid shield make it ideal for tight internal wiring where space is at a premium. Typical uses include GPS antenna pigtails, WiFi module connections, and short adapter leads inside enclosures.
Misc Connector
This connector type includes specialized or application-specific RF connectors designed for particular equipment or industries. These may include 2.4mm, 2.92mm (K), 1.85mm (V), SMP, SSMP, or proprietary interface types used in precision microwave measurement, defense electronics, and specialized RF subsystems.
F Connector
The F connector is a low-cost threaded coaxial connector used almost exclusively in cable TV, satellite, and over-the-air broadcast applications. It uses the center conductor of RG-6 or RG-59 cable as the pin, which simplifies termination and reduces cost. F connectors are found on cable modems, satellite receivers, TV tuners, and distribution amplifiers.
Common Applications
This F and Misc cable assembly is well suited for GPS and WiFi module pigtails, short flexible adapter leads, and internal device wiring. The combination of reliable F and Misc connectors and custom-cut cable length makes it a practical choice for both field installations and bench setups. Every assembly is hand-terminated, continuity tested, and ships free within the USA.
RG174 Signal Loss
Approximate attenuation at common RF frequencies.
| Frequency | Loss / 100 ft | Loss / ft |
|---|---|---|
| 100 MHz | 6.6 dB | 0.066 dB |
| 450 MHz | 14.5 dB | 0.145 dB |
| 900 MHz | 21.5 dB | 0.215 dB |
| 1.8 GHz | 32 dB | 0.32 dB |
| 2.4 GHz | 38 dB | 0.38 dB |
| 5.8 GHz | 65 dB | 0.65 dB |
Frequently Asked Questions
What is RG174 coaxial cable used for?
RG-174 is an ultra-thin, highly flexible 50-ohm coaxial cable with a 0.100" outer diameter — one of the smallest coax types available. Its stranded center conductor and single-braid shield make it ideal for tight internal wiring where space is at a premium. Typical uses include GPS antenna pigtails, WiFi module connections, and short adapter leads inside enclosures.
What is the signal loss of RG174?
At 1800 MHz, RG174 has approximately 32 dB of loss per 100 ft (0.32 dB/ft).
What frequency range does this assembly support?
This assembly is rated DC – 2 GHz, limited by the lowest-rated component across the cable and connectors.
What is a Misc connector?
This connector type includes specialized or application-specific RF connectors designed for particular equipment or industries. These may include 2.4mm, 2.92mm (K), 1.85mm (V), SMP, SSMP, or proprietary interface types used in precision microwave measurement, defense electronics, and specialized RF subsystems.
