RG316 Coaxial Cable
Custom RG316 cable assemblies. Choose from 101 compatible connectors and any length from 1 to 50 feet.
Specifications
Diameter
.1 INCH
Impedance
50 Ohm
Frequency
DC – 6 GHz
Vel. Factor
70%
Max Voltage
1200 VRMS
Shield
Silver-plated copper braid (90%)
Jacket
FEP
Bend Radius
0.5 in (13mm)
Weight
1.0 lb/100ft
Temp Range
-55°C to +200°C
About RG316
RG-316 is a lightweight, flexible 50-ohm PTFE coaxial cable with a 0.100" outer diameter, combining good high-frequency performance with excellent flexibility. Silver-plated copper conductors and PTFE dielectric allow reliable operation from DC to 3 GHz and beyond. Widely used in instrumentation, test equipment, and antenna pigtails where flexibility and moderate power handling are needed.
Attenuation (dB per 100 ft)
100 MHz
5.5 dB
450 MHz
12.5 dB
900 MHz
18.5 dB
1.8 GHz
27.0 dB
2.4 GHz
32.0 dB
5.8 GHz
55.0 dB

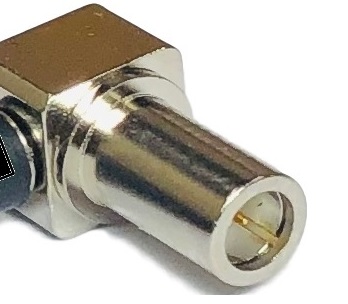

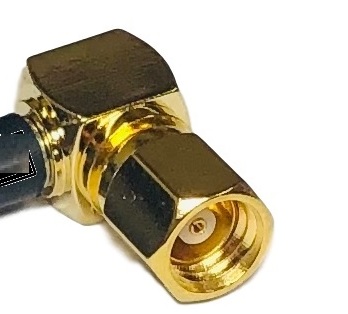

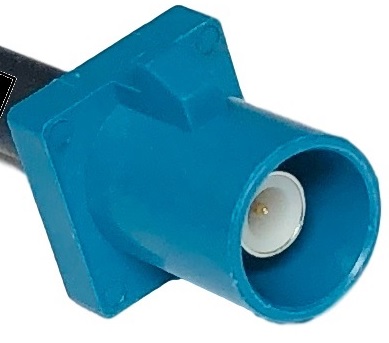

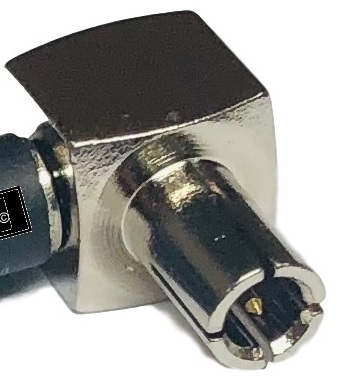

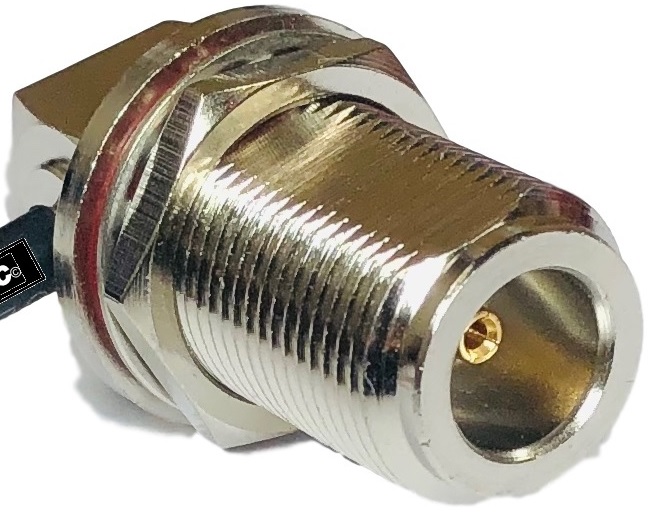

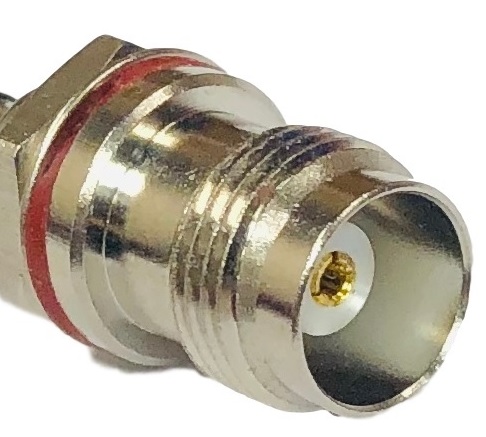

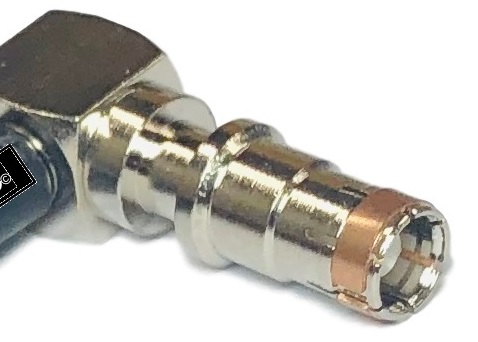

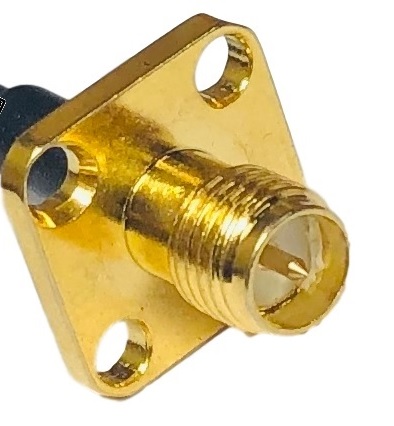

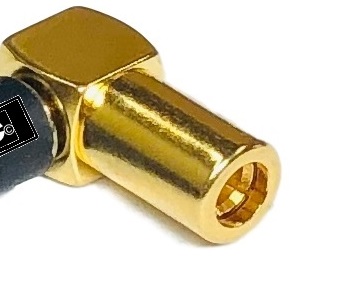

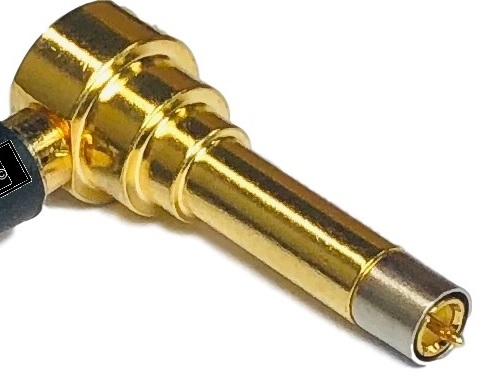

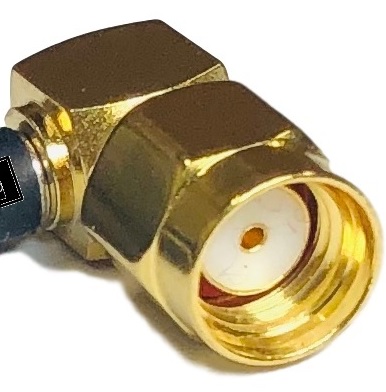

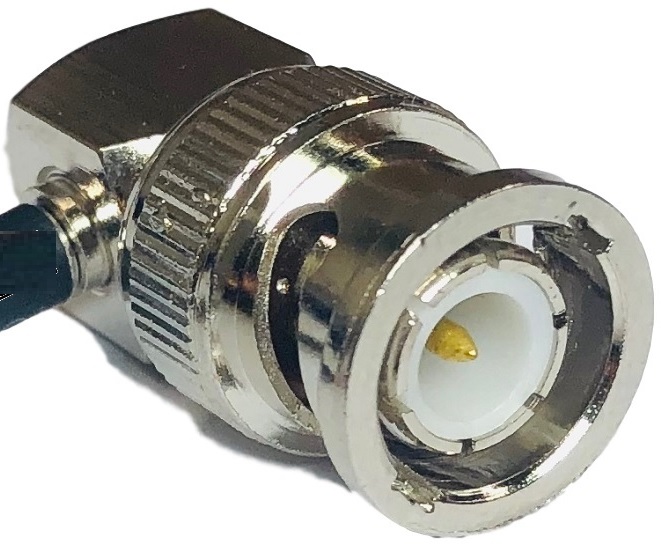

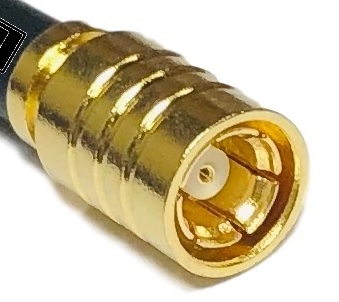

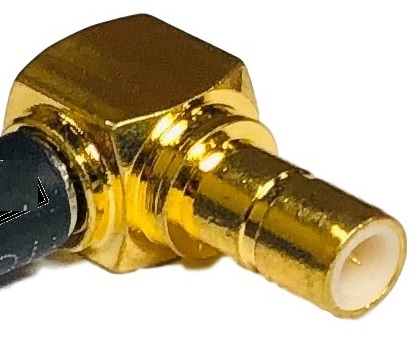

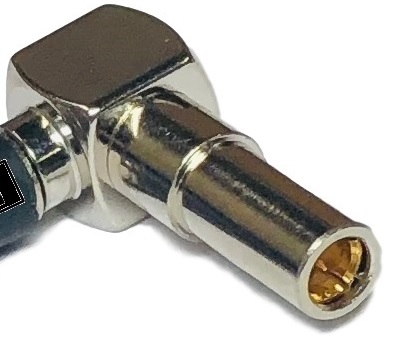

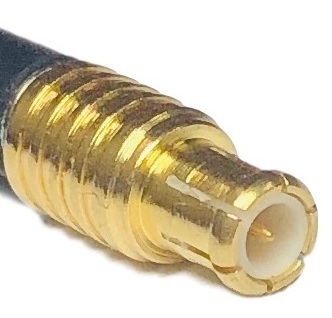

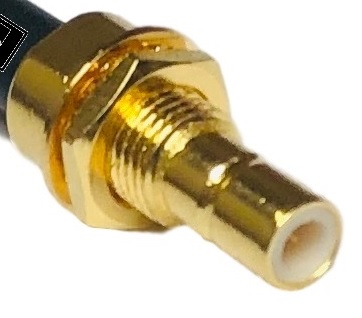

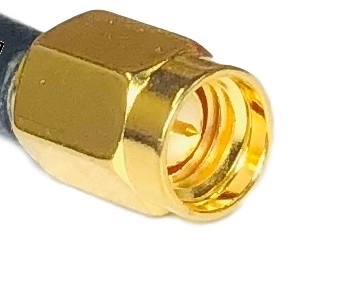

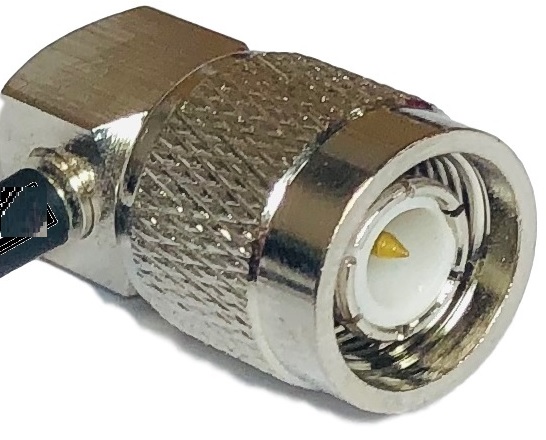

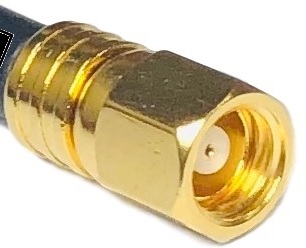

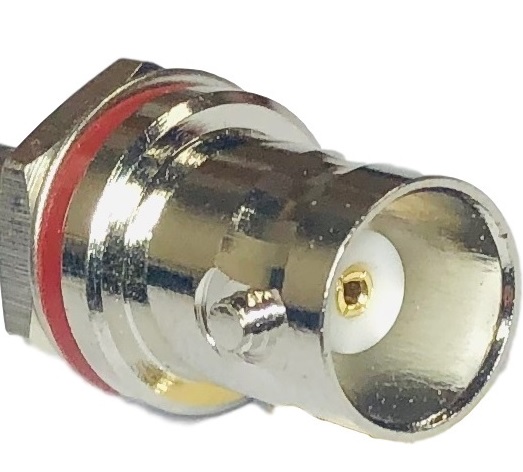

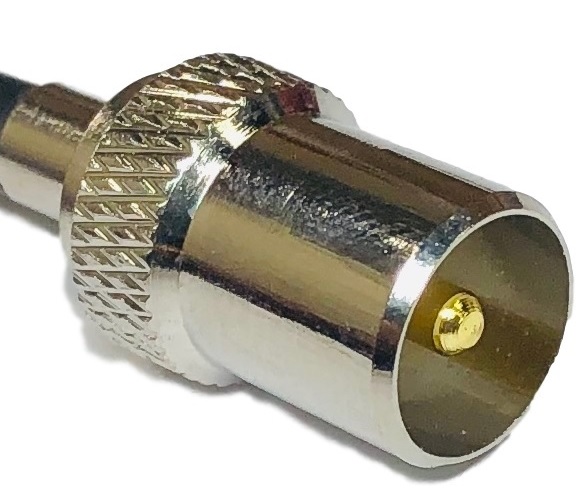

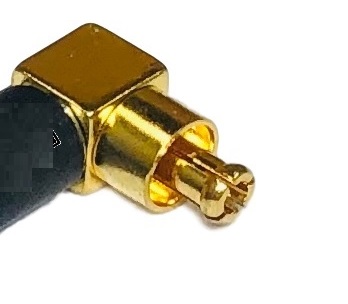

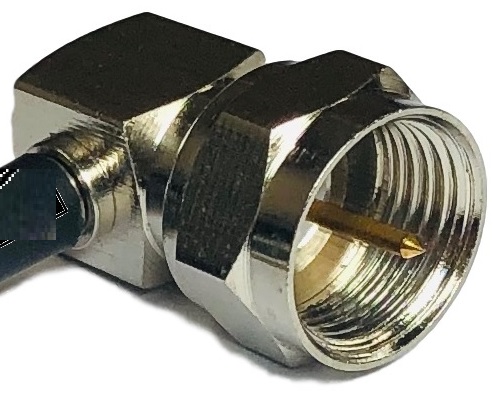

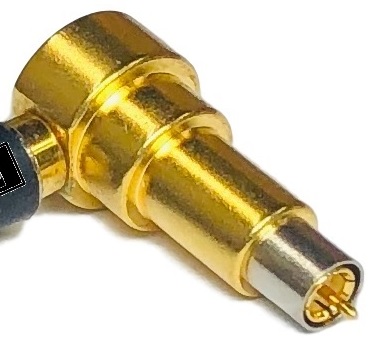

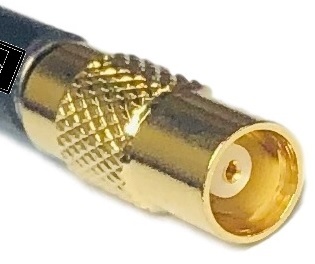

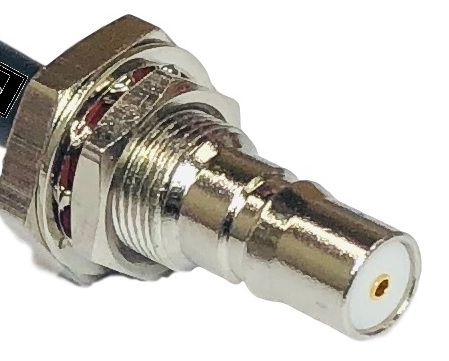

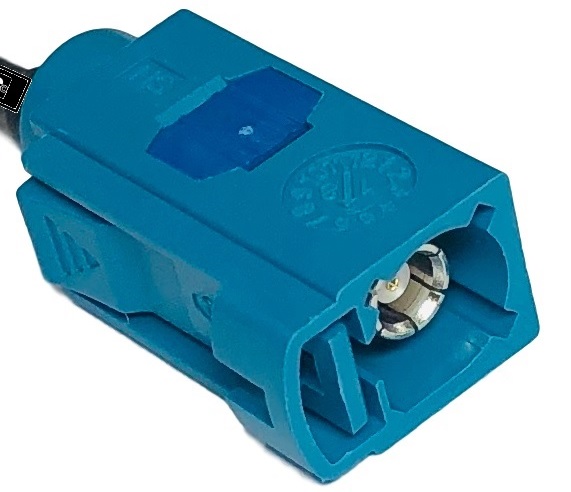

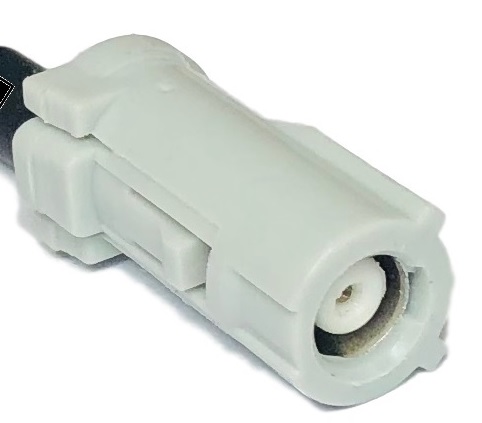

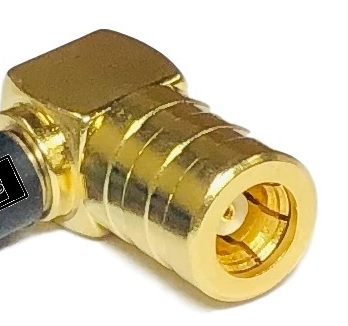

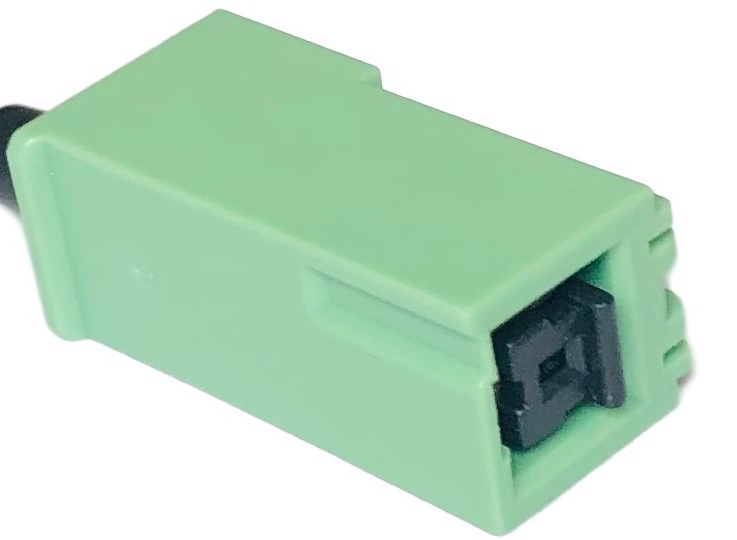

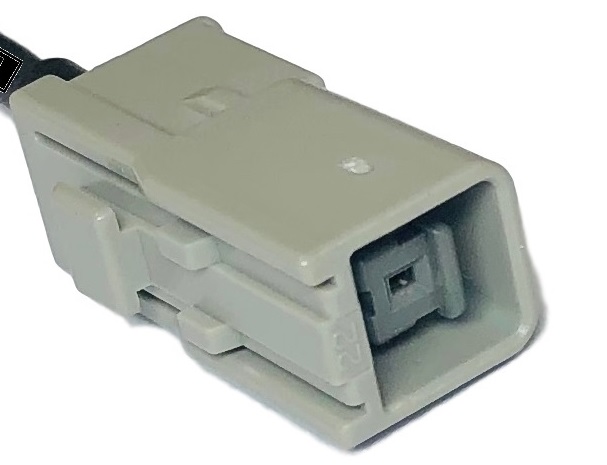

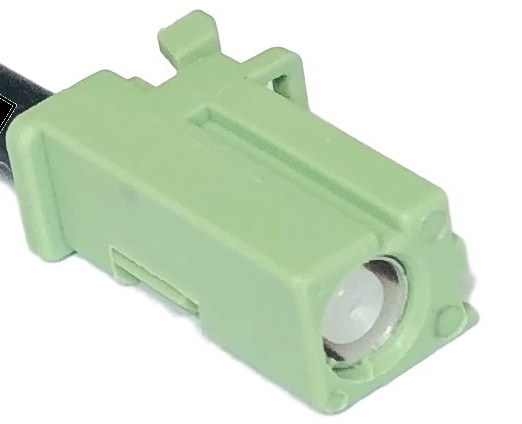

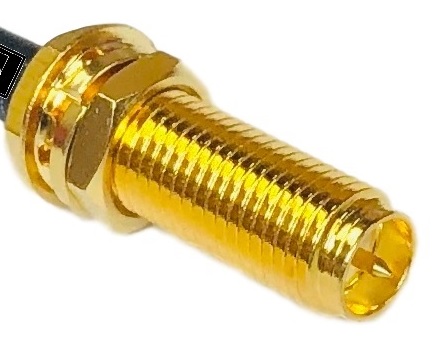

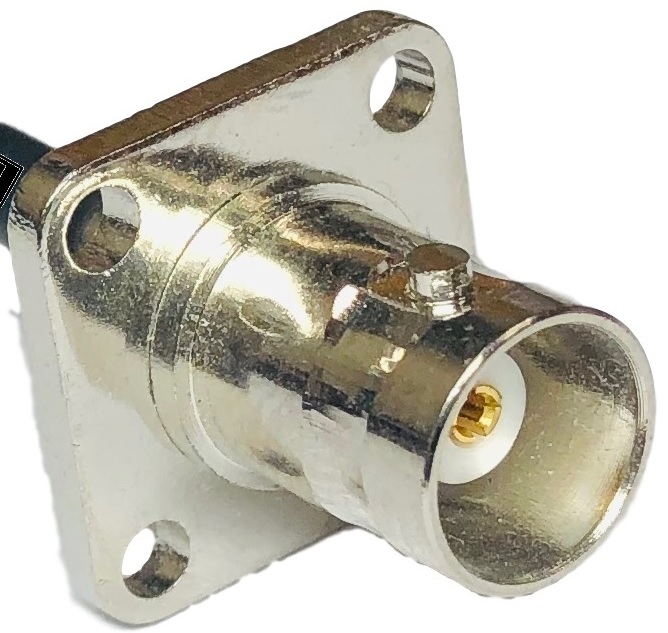

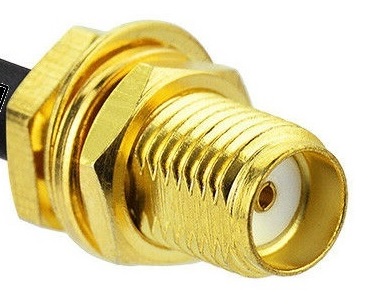

Select End A Connector (101 available)
Choose the connector for the first end of your cable.
Select End B Connector
Choose the connector for the second end.
Common Applications
Frequently Asked Questions
What connectors are compatible with RG316?

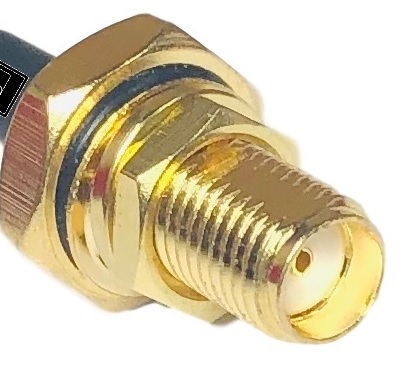

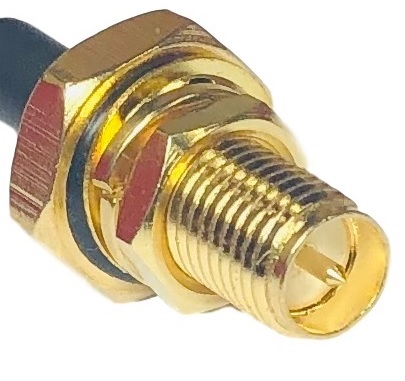

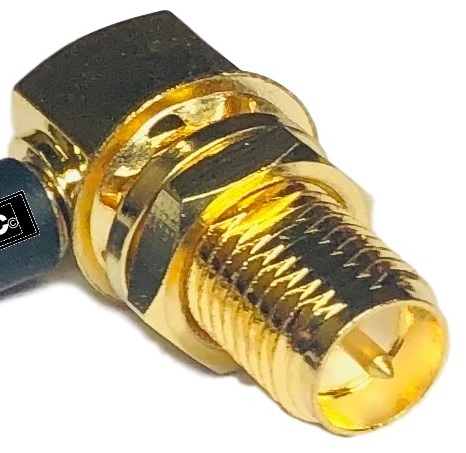

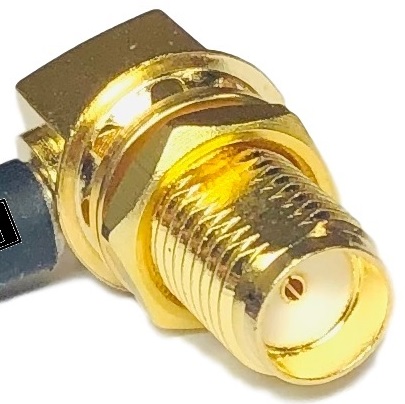

RG316 is compatible with 101 connector types including SMA MALE, SMA FEMALE, RP-SMA MALE, RP-SMA FEMALE, SMA MALE ANGLE, and more. All connectors can be paired in any combination.
What is the impedance of RG316?
50 Ohm — standard for RF systems, test equipment, and antenna feedlines.
What frequency range does RG316 support?
RG316 supports frequencies from DC to DC – 6 GHz.
How are RG316 cables assembled?
Every RG316 cable assembly is hand-terminated and continuity tested at our US facility before shipping. We do not drop-ship pre-made cables — each one is built to your specifications.
What lengths are available for RG316?
RG316 is available from 1 ft up to 50 ft. Use the cable builder for any custom length.
