Cable
RG402_BLUE

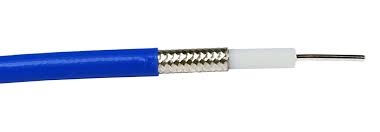

RG402_BLUE Coaxial Cable
Custom RG402_BLUE cable assemblies. Choose from 12 compatible connectors and any length from 1 to 36 feet.
Specifications
Diameter
.141 INCH
Impedance
50 Ohm
Frequency
DC – 20 GHz
Vel. Factor
69%
Max Voltage
1500 VRMS
Shield
Solid copper outer conductor
Jacket
FEP (blue, conformable)
Bend Radius
0.38 in (10mm)
Weight
3.2 lb/100ft
Temp Range
-55°C to +200°C
About RG402_BLUE
RG-402 Blue is identical in electrical specification to standard RG-402 but features a blue outer jacket for easy visual identification in multi-cable lab setups. Color coding simplifies cable management on test benches and helps prevent mix-ups in complex wiring harnesses or rack-mounted equipment.
Attenuation (dB per 100 ft)
100 MHz
3.5 dB
450 MHz
7.5 dB
900 MHz
10.8 dB
1.8 GHz
15.5 dB
2.4 GHz
18.5 dB
5.8 GHz
30.0 dB
Select End A Connector (12 available)
Choose the connector for the first end of your cable.
Select End B Connector
Choose the connector for the second end.
Common Applications
Frequently Asked Questions
What connectors are compatible with RG402_BLUE?
RG402_BLUE is compatible with 12 connector types including SMA MALE, SMA FEMALE, RP-SMA MALE, RP-SMA FEMALE, SMA MALE ANGLE, and more. All connectors can be paired in any combination.
What is the impedance of RG402_BLUE?
50 Ohm — standard for RF systems, test equipment, and antenna feedlines.
What frequency range does RG402_BLUE support?
RG402_BLUE supports frequencies from DC to DC – 20 GHz.
How are RG402_BLUE cables assembled?
Every RG402_BLUE cable assembly is hand-terminated and continuity tested at our US facility before shipping. We do not drop-ship pre-made cables — each one is built to your specifications.
What lengths are available for RG402_BLUE?
RG402_BLUE is available from 1 ft up to 36 ft. Use the cable builder for any custom length.
