RG58 Coaxial Cable
Custom RG58 cable assemblies. Choose from 52 compatible connectors and any length from 1 to 100 feet.
Specifications
Diameter
.195 INCH
Impedance
50 Ohm
Frequency
DC – 1 GHz
Vel. Factor
66%
Max Voltage
1400 VRMS
Shield
Tinned copper braid (95%)
Jacket
PVC
Bend Radius
1.0 in (25mm)
Weight
2.2 lb/100ft
Temp Range
-40°C to +85°C
About RG58
RG-58 is a classic flexible 50-ohm coaxial cable with a 0.195" outer diameter, offering an excellent balance of flexibility and performance at a low cost. Its braided shield provides good EMI rejection and its thin profile makes it easy to route through tight spaces. Common applications include amateur radio, CB radio, networking equipment connections, and general-purpose RF jumpers up to 25 feet.
Attenuation (dB per 100 ft)
100 MHz
4.3 dB
450 MHz
9.8 dB
900 MHz
14.3 dB
1.8 GHz
21.5 dB
2.4 GHz
25.5 dB
5.8 GHz
44.0 dB

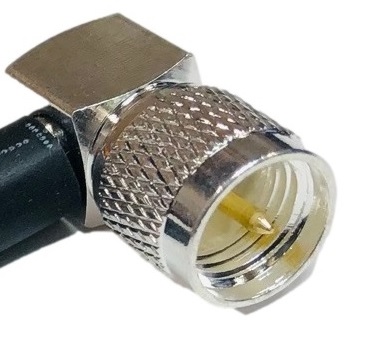

Select End A Connector (52 available)
Choose the connector for the first end of your cable.
Select End B Connector
Choose the connector for the second end.
Common Applications
Frequently Asked Questions
What connectors are compatible with RG58?
RG58 is compatible with 52 connector types including SMA MALE, SMA FEMALE, RP-SMA MALE, RP-SMA FEMALE, SMA MALE ANGLE, and more. All connectors can be paired in any combination.
What is the impedance of RG58?
50 Ohm — standard for RF systems, test equipment, and antenna feedlines.
What frequency range does RG58 support?
RG58 supports frequencies from DC to DC – 1 GHz.
How are RG58 cables assembled?
Every RG58 cable assembly is hand-terminated and continuity tested at our US facility before shipping. We do not drop-ship pre-made cables — each one is built to your specifications.
What lengths are available for RG58?
RG58 is available from 1 ft up to 100 ft. Use the cable builder for any custom length.
