RG142 — BNC MALE to N MALE
PTFE lab-grade BNC to N jumper for military, aerospace, and precision RF test benches.
Cable
RG142
End A
BNC MALE
End B
N MALE
Used For
Military & Aerospace Test Cable
RG142 with BNC to N male is a standard bench cable in military test facilities, aerospace labs, and calibration environments. The PTFE dielectric withstands heat cycling and maintains phase stability for spectrum analyzers, signal generators, and VNA calibration.
Specs Summary
Made in USA
Assembled and tested in-house
Free Shipping
Fast, reliable delivery
Tested & Verified
Every cable tested before shipping
Easy Returns
30-day hassle-free returns
Still need help? Talk to an expert.
Our RF team is happy to point you in the right direction.
Call an RF expert
1-661-200-0771
Email us
sales@wifiexpert.us
Need a custom cable?
Build your exact cable in seconds using our Cable Builder.
About This Assembly
Specs Summary

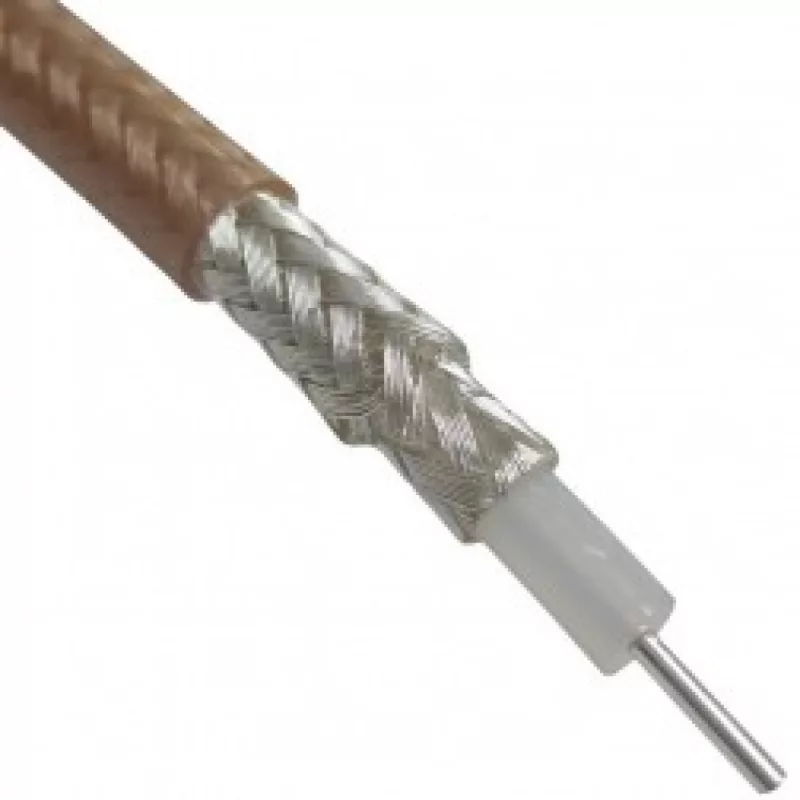

RG142 Cable
RG-142 is a double-shielded 50-ohm PTFE coaxial cable rated for operation from cryogenic temperatures up to +200°C with a 0.195" outer diameter. Its dual-shield construction provides excellent EMI rejection while the PTFE dielectric ensures stable electrical performance across a wide frequency range. The preferred choice for military, aerospace, and high-power RF applications.
BNC Connector
BNC (Bayonet Neill–Concelman) is a quick-connect RF connector featuring a bayonet locking mechanism for fast mating and unmating, rated from DC to 4 GHz. Its ease of use makes it standard in test and measurement equipment, video distribution, two-way radio accessories, and laboratory bench setups where cables are frequently connected and disconnected.
N Connector
Type N is a threaded RF connector rated from DC to 18 GHz with a durable weatherproof design, making it the preferred interface for outdoor antenna installations, cellular base stations, and commercial wireless infrastructure. Its larger size compared to SMA allows higher power handling and the threaded coupling resists vibration, making it suitable for mobile and fixed outdoor applications.
Common Applications
This BNC and N cable assembly is well suited for high-temperature and high-power military or aerospace RF assemblies. The combination of reliable BNC and N connectors and custom-cut cable length makes it a practical choice for both field installations and bench setups. Every assembly is hand-terminated, continuity tested, and ships free within the USA.
RG142 Signal Loss
Approximate attenuation at common RF frequencies.
| Frequency | Loss / 100 ft | Loss / ft |
|---|---|---|
| 100 MHz | 3.8 dB | 0.038 dB |
| 450 MHz | 8.5 dB | 0.085 dB |
| 900 MHz | 12.5 dB | 0.125 dB |
| 1.8 GHz | 18.5 dB | 0.185 dB |
| 2.4 GHz | 21.5 dB | 0.215 dB |
| 5.8 GHz | 37 dB | 0.37 dB |
Frequently Asked Questions
What is RG142 coaxial cable used for?
RG-142 is a double-shielded 50-ohm PTFE coaxial cable rated for operation from cryogenic temperatures up to +200°C with a 0.195" outer diameter. Its dual-shield construction provides excellent EMI rejection while the PTFE dielectric ensures stable electrical performance across a wide frequency range. The preferred choice for military, aerospace, and high-power RF applications.
What is the signal loss of RG142?
At 1800 MHz, RG142 has approximately 18.5 dB of loss per 100 ft (0.185 dB/ft).
What frequency range does this assembly support?
This assembly is rated DC – 4 GHz, limited by the lowest-rated component across the cable and connectors.
What is a BNC connector?
BNC (Bayonet Neill–Concelman) is a quick-connect RF connector featuring a bayonet locking mechanism for fast mating and unmating, rated from DC to 4 GHz. Its ease of use makes it standard in test and measurement equipment, video distribution, two-way radio accessories, and laboratory bench setups where cables are frequently connected and disconnected.
